01. Detail Information
상세정보

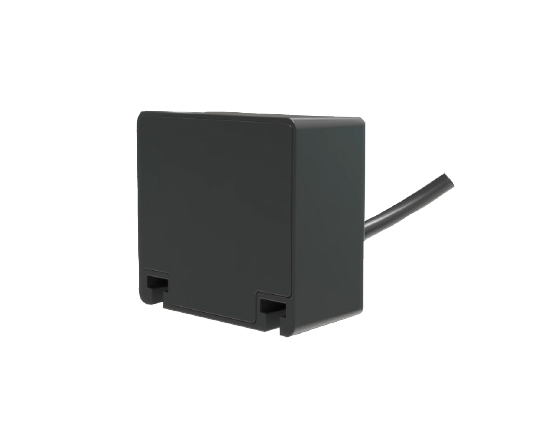

Product
CGS-KF112
Category

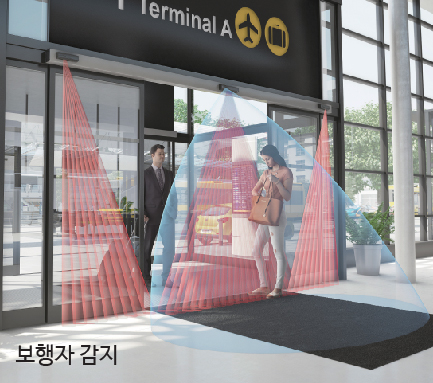

보행자 감지
Type
Microwave Doppler Radar

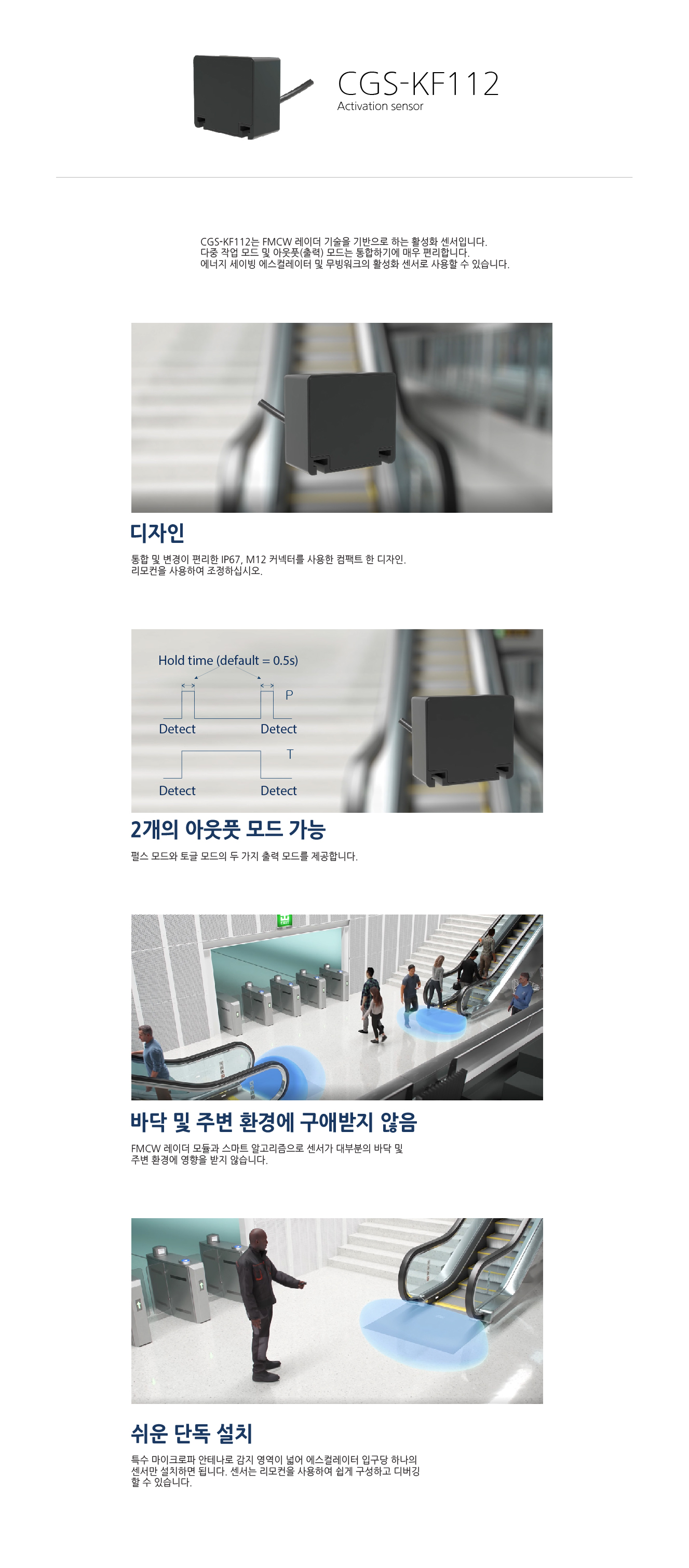

Detail View
제품 상세 이미지
Specification
주요 스펙
- Technology:
- FMCW Technology
- Transmitter frequency
- 24.00 GHz ~ 24.25 GHz
- Transmitter radiated power
- <20dBm EIRP
- Transmitter power density:
- < 10 W/m²
- Detection mode:
- motion
- Supply voltage:
- 12 V to 24 V DC +30% / -10%
- Max. power consumption:
- < 1.5W
- Output:
- Output : PNP Max. switching current : 100mA Output voltage : Vin-Vdrop Voltage drop (Vdrop)) : <2V @ 100mA
- Temperature range:
- from -20 °C to + 55 °C
- Dimensions:
- 48mm (L) x 43 mm (H) x 24 mm (W)
- Cable length:
- 5m/7m cable with M12 connector (Female)
- Degree of protection:
- IP67
