01. Detail Information
상세정보
Product

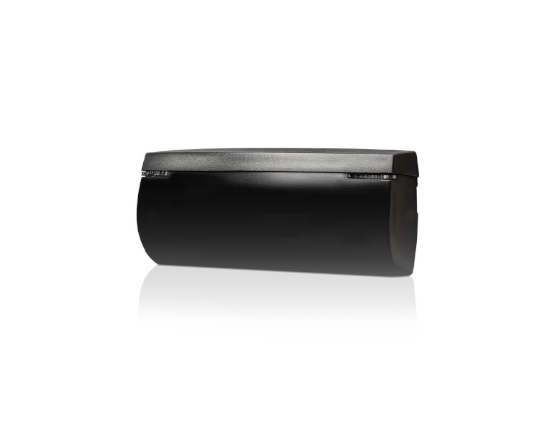

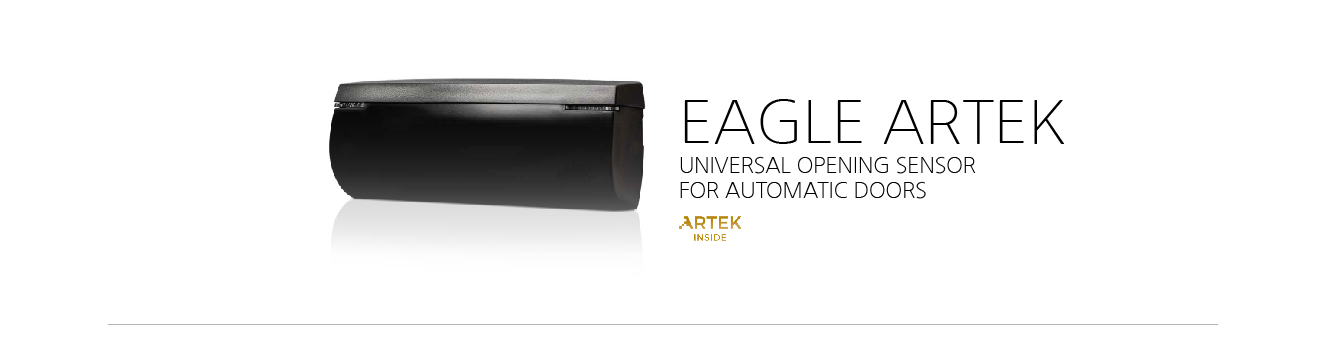

EAGLE ARTEK
Category

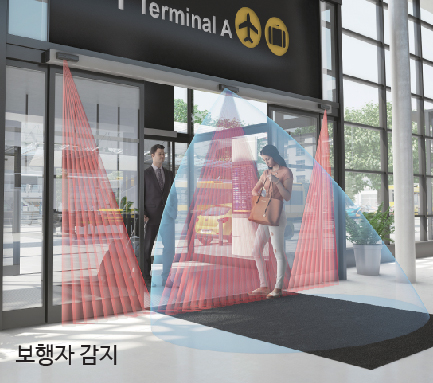

보행자 감지
Type
Sensor Solution
Detail View
제품 상세 이미지
Specification
주요 스펙
- Technology
- Microwave
- Transmitter frequency
- 24.15 GHz
- Transmitter radiated power
- < 20 dBm EIRP
- Transmitter power density
- < 5 mW/cm²
- Detection mode
- Motion
- Max. detection range
- Wide : 4 m x 2m Ι Narrow : 2 m 2.2 m @2.2 m high
- Min. detection speed
- 5 cm/s
- Supply voltage
- 12V to 24V AC ±10% (50 - 60 Hz) ; 12V to 24V DC +30% / -10%
- Max power consumption
- < 1 W
- Output
- Solid-state reply (free of polarity) Max. switching voltage: 30V AC / 42V DC Min. switching current: 100mA (resistive)
- Mounting height
- From 1.8 m to 4 m
- Degree of protection
- IP54 (IEC/EN 60529)
- Temperature range
- From -20 ℃ to + 55 ℃
- Dimensions
- 120 mm (L) x 50 mm (H) x 50 mm (W)
- Tilt angles
- 0° to 90° vertical; -30° to +30° lateral
- Material
- ABS
- Weight
- 120 g
- Cable length
- 2.5m
