Product

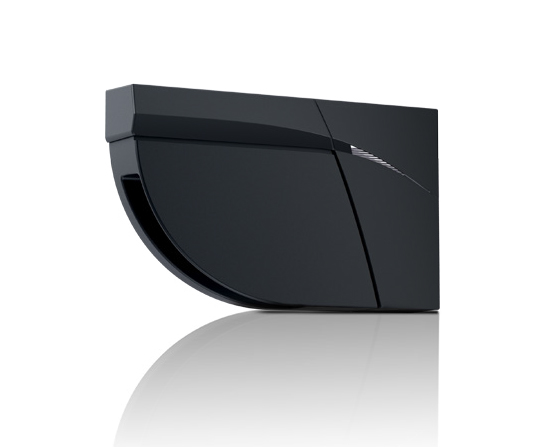

FLATSCAN-KSW
Category
보행자 감지
Type

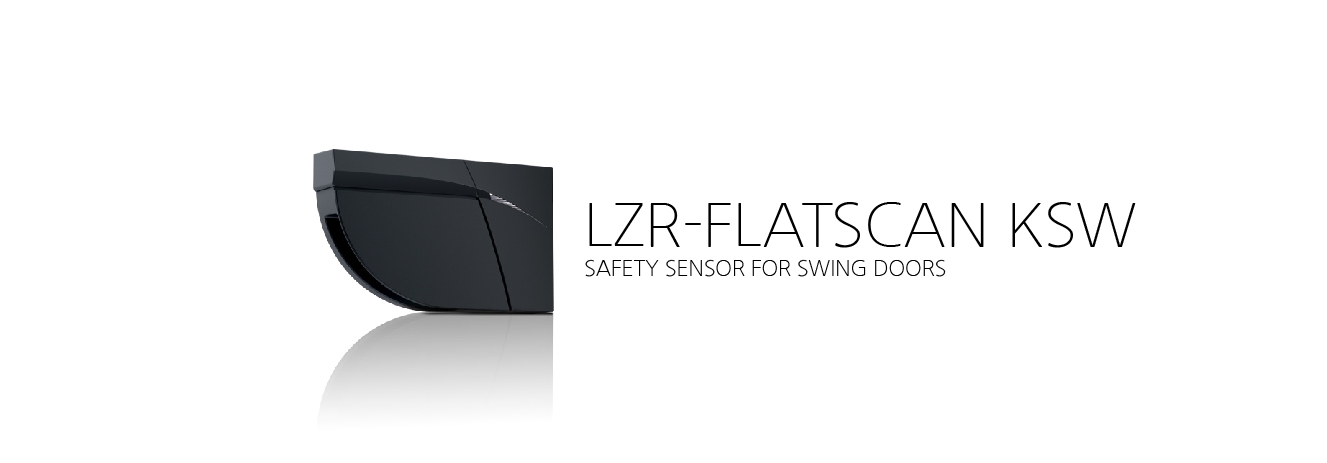

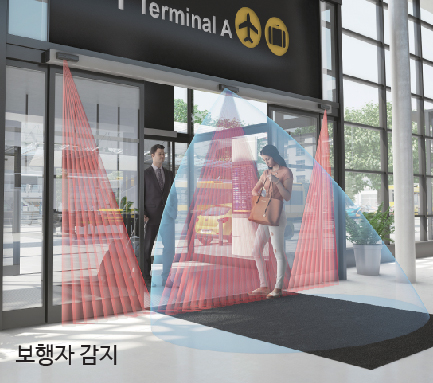

LASER TECHNOLOGY FOR YOUR DOOR
Detail View

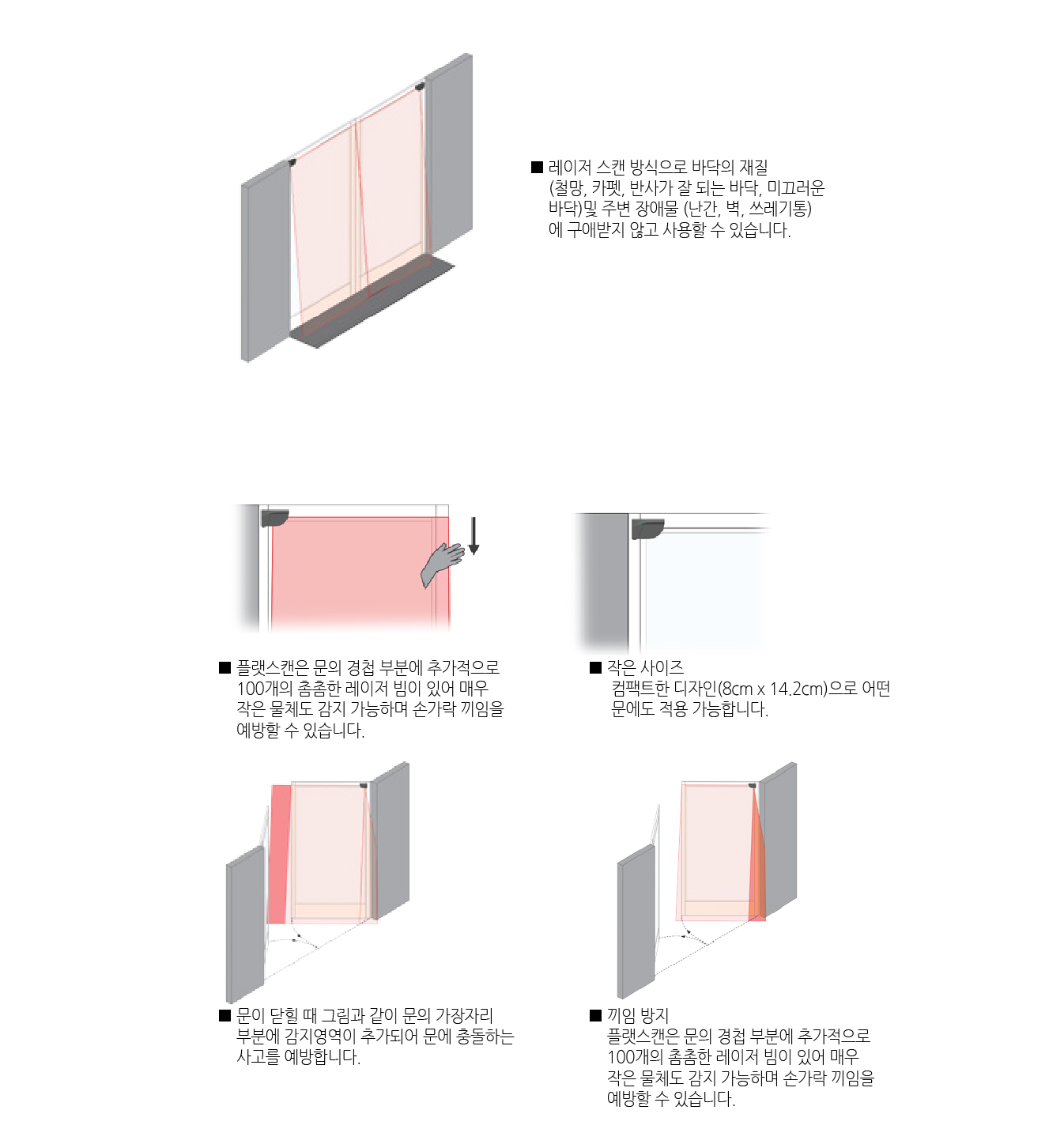

제품 상세 이미지
Specification
주요 스펙
- 기술
- LASER scanner, time-of-flight measurement
- 감지모드
- Presence
- 최대 감지영역
- 4 m (diagonal) with reflectivity of 2% (i.e. : at W = 1.5m -> max. H = 3.7 m)
- Opening angle
- Door wing safety: 90° / Hinge area: 16°
- Angular resolution
- Door wing safety: 1.3°/ Hinge area: 0.2°
- 최소감지물체크기
- Door wing safety : 10 cm @ 4m (in proportion to object distance) Hinge area : 2 cm @ 4m (in proportion to object distance)
- Testbody
- 700 mm × 300 mm × 200 mm (testbody A according to EN 16005 & DIN 18650)
- Emission characteristics
- IR LASER : Wavelength 905 nm; max. output pulse power 25 W; Class 1
- 공급전압
- 12 - 24 V DC ± 15 %
- 소비전력
- ≤ 2 W
- 응답시간
- Door wing safety: max. 50 ms / Hinge area: max. 90 ms
- 출력
- 2 electronic relays (galvanic isolation - polarity free) Max. switching voltage : 42V AC/DC Max. switching current : 100 mA
- LED신호
- 1 bi-coloured LED : detection/output status
- 크기
- 142 mm (L) × 85 mm (D) × 23 mm (H) ( mounting bracket + 7 mm )
- 설치각도
- +2° à +10° (without mounting bracket)
- IP등급
- IP54
- 사용가능온도
- -30°C to +60°C if powered
- 습도
- 0-95 % non-condensing
- Vibrations
- < 2 G
- Norm conformity
- 2006/95/EC: LVD; 2011/65/EU: RoHS 2; 2004/108/EC: EMC; 2006/42/EC: MD; EN 12978: 2009; EN ISO 13849-1: 2008 Pl “d”/ CAT2; EN 60529: 2001; IEC 60825-1: 2014; EN 60950-1: 2013; EN 61000-6-2: 2005; EN 61000-6-3: 2011; IEC 61496-1: 2012; EN 61496-3: 2008 ESPE Type 2; EN 62061: 2012 SIL 2; DIN 18650-1: 2010 Chapter 5.7.4 (testbody A); EN 16005:2012 Chapter 4.6.8 (testbody A)
