01. Detail Information

상세정보

Product

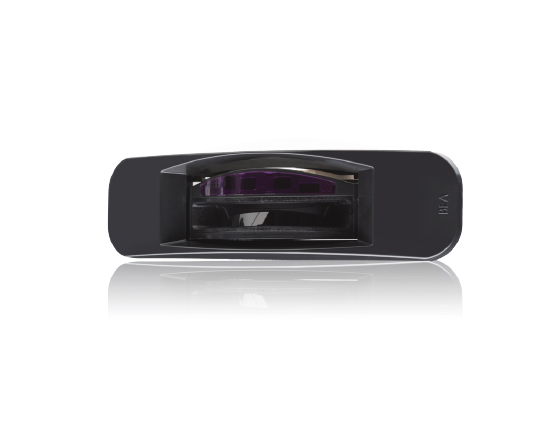

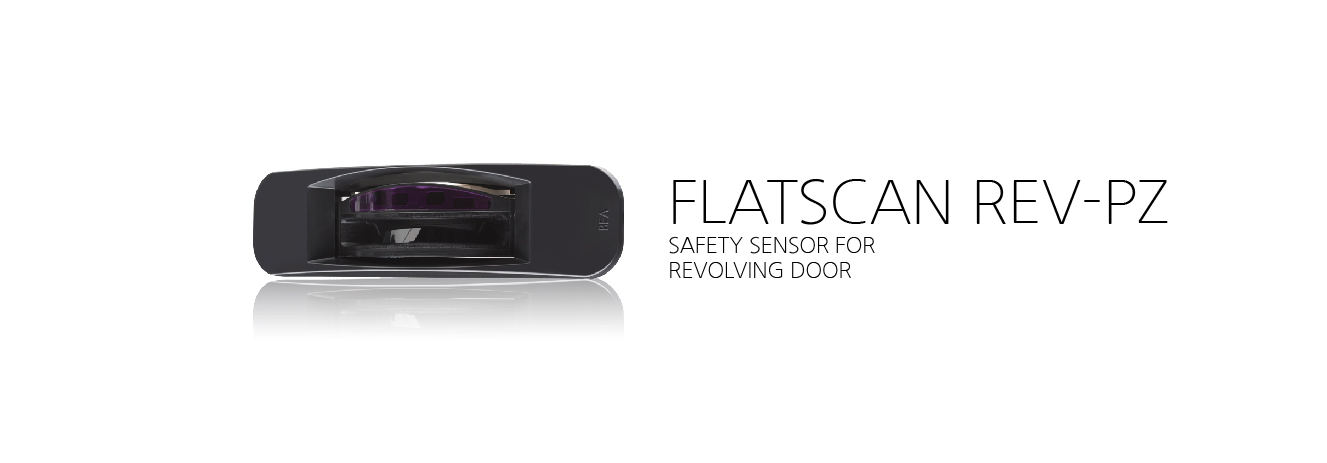

FLATSCAN-REV-PZ

Specification

기술: LASER scanner, time-of-flight measurement
감지모드: Presence
최대 감지영역: 4m ( diagonal ) with reflectivity of 5% 5m ( diagonal ) with reflectivity of 8%
Opening angle: 90˚
Angular resolution: 0.23˚ ( 400 spots within 90˚ )
Testbody: 700 mm × 300 mm × 200 mm (testbody CA) according to EN 16005 & DIN 18650, <4m; 50mm cylinder (testbody CB) according DIN18650 <3.5m height.
Emission characteristics: Wavelength 905 nm; max. output pulse power 25 W ( CLASS 1 ) . Wavelength 650 nm; max. output CW power 3 mW ( CLASS 3R ) visible spots.
공급전압: 12-24V DC ± 15%
소비전력: ≤ 2.2 W
응답시간: Max. 90 ms
출력: 1 optocoupler ( galvanic isolation - polarity free ) Max. switching voltage: 42V AC/ 60V DC Max. switching current: 100 mA 1 Relay ( free of potential change-over contact ) Max. contact voltage: 60V AC / 125V DC Max. contact current: 1.0A ( resistive ) Max. switching power: 30W ( DC ) / 60VA ( AC )
LED신호: 1 bi-coloured LED: detection / output status
크기: 178 mm (L) × 85 mm (H) × 53 mm (D)
설치각도: 0° to +5°
IP등급: IP54 ( EN 60529 )
사용가능온도: -30°C to +60°C if powered
습도: 0-95% non-condensing
Vibrations: < 2 G
Norm conformity: EN 12978; EN ISO 13849-1 Pl “d”/ CAT2; IEC 60825-1; EN 60950-1; EN 61000-6-2; EN 61000-6-3; EN 62061 SIL 2; DIN 18650-1 Chapter 5.7.4 ( testbody CA & testbody CB ); EN16005 Chapter 4.6.8 ( testbody CA )
