01. Detail Information
상세정보
Product

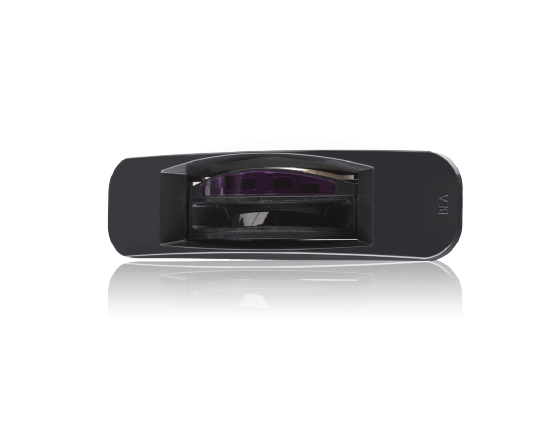

FLATSCAN-SL
Category

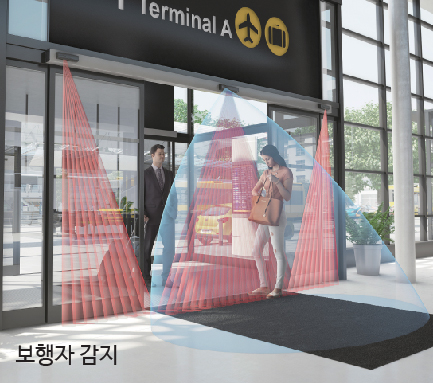

보행자 감지
Type
Multi-functional sensor for sliding doors
Detail View

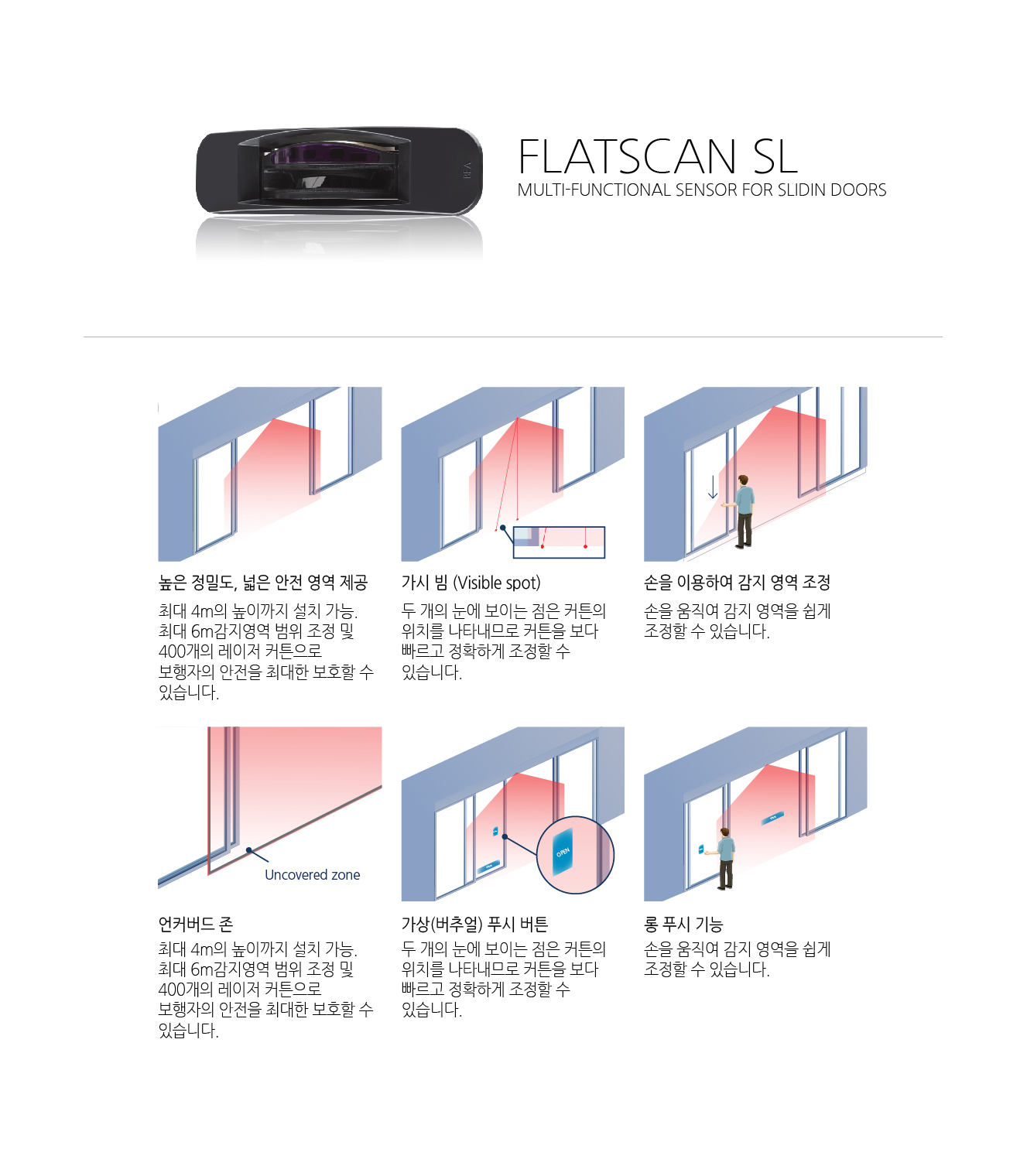

제품 상세 이미지
Specification
주요 스펙
- 기술
- LASER scanner, time-of-flight measurement
- 감지모드
- Presence
- 최대설치높이
- 5m (with reflectivity of 8%) 4m (with reflectivity of 5%)
- 열림 각도
- 90°
- 각도 분해능
- 0.23° (400 spots within 90°)
- 테스트바디
- 700 mm x 300 mm x 200 mm (test body CA according to EN 16005, <4m)
- 광학 특성
- Wavelength 650 nm; max. output CW power 3 mW (CLASS 2) - visible spotWavelength 905 nm; average output power 0.05 mW; CLASS 1
- 공급 전압
- 12-24V DC ± 15%
- 소비 전력
- ≤ 2.2 W
- 응답 시간
- Max. 90 ms
- 출력
- 1 optocoupler ( galvanic isolation - polarity free ) Max. switching voltage: 42V AC/ 60V DC Max. switching current: 100 mA Max. contact voltage: 60V AC / 125V DC1 Relay ( free of potential change-over contact ) Max. contact current: 1.0A ( resistive ) Max. switching power: 30W ( DC ) / 60VA ( AC )
- LED 표시
- 1 bi-coloured LED: detection/output status
- 크기
- 168 mm (L) × 93 mm (H) × 42.5 mm (D)
- 색상
- PC/ABS - Black - Aluminium
- 틸트 각도
- 0° to +5°
- 외부보호등급
- IP54 (IEC/EN 60529)
- 사용가능온도
- -30°C to +60°C if powered
- 습도
- 0-95 % non-condensing
- 진동
- < 2 G
- 적합성
- EN IEC 61000-6-2:2019 EN 61000-6-3:2007 + A1:2011 EN 61000-4-16:2016 EN 61000-4-8:2010 EN 61000-4-3:2006 + A1:2008 + A2:2010
