Product

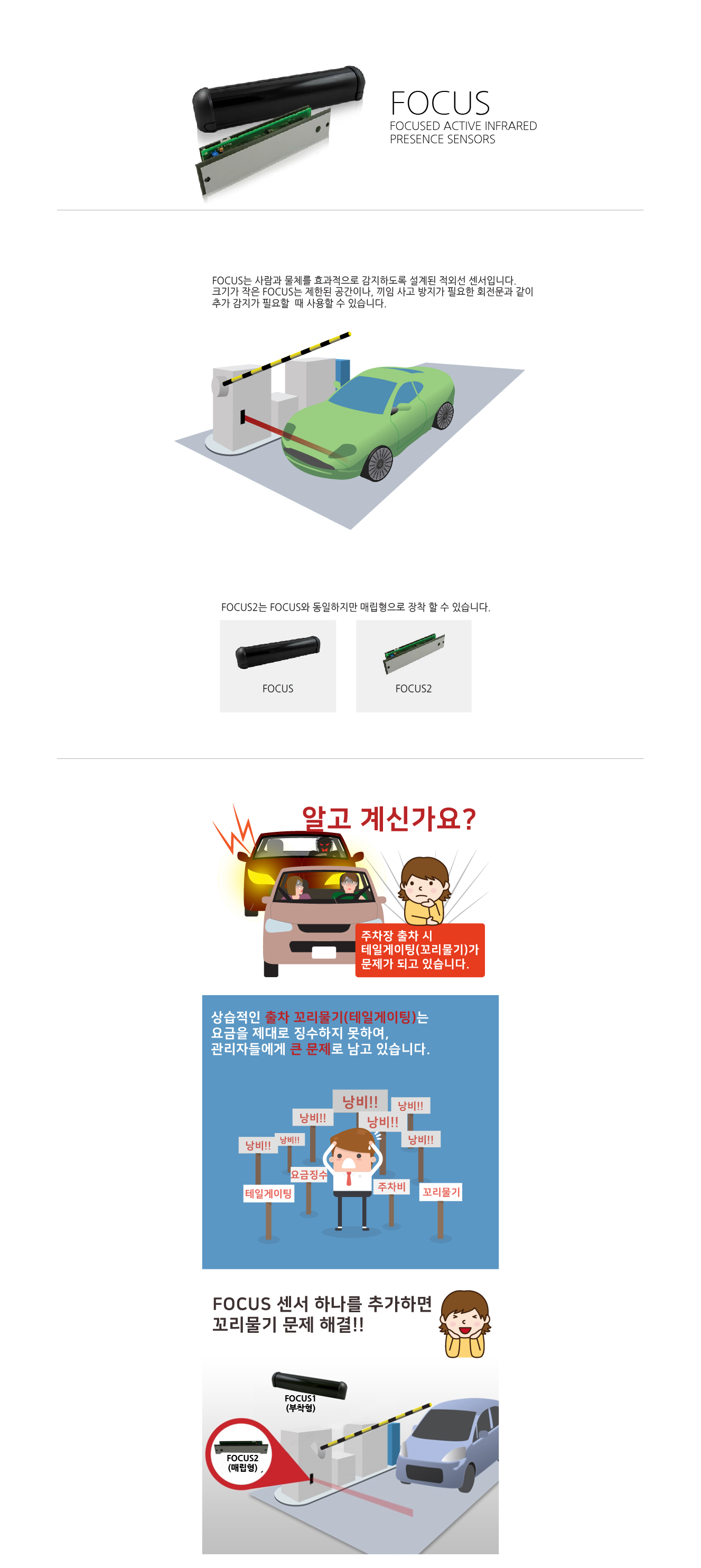

FOCUS

Specification

Technology: Focused Active Infrared
Detection Mode: presence and motion
Supply voltage: 24 V AC ±10% - 24 V DC ±20%
Current Consumption: < 1 W (VA)
Output: relay with switch-over contact (voltage free) relay contact ratings (max voltage) : 60 V DC / 125 V AC relay contact ratings (max current) : 1 A (resistive) max switching power : 30 W (DC) / 60 VA (AC)
Detection Signal Duration: Infinite
Detection distance: 0.6 m to 2.5 m (adjustable)
Mounting height: 3 m max
Tilt angle of the module: Focus 220/340/700/900 : 0° - 5° - 10° - 15° - 20° - 25°
Diameter of the IR spot at 1.7 m height: 0.10 m
Response time: < 50 ms
Mains frequency: 50 to 60 Hz
Output hold time: 100 ms
Adjustments: detection distance (per rotatingcame) tilt angle from 0° to 25° in 5° steps (Focus 220/340/700/900)
Temperature range: 25°C to +55°C
Immunity: Electromagnetic compatibility (EMC) according to EMC 2004/108/EC
FOCUS 1: Dimensions of housing : 220/340/700/900 mm (L) x 48 mm (H) x 48 mm (D) Weight : 0.2 kg Material : aluminium, ABS and plexiglass Colour of housing : naturally anodised or black black front sides Cable length : 3m
FOCUS 2: Dimensions of printed circuit : 170mm (L) x 37mm (H) x 27mm (D) Dimensions of front cover : 200mm (L) x 45mm (H) x 5mm (D) Weight : 0.125 kg Material of front cover : plexiglass Colour of front cover : black Cable length : 3m
