01. Detail Information
상세정보
Product

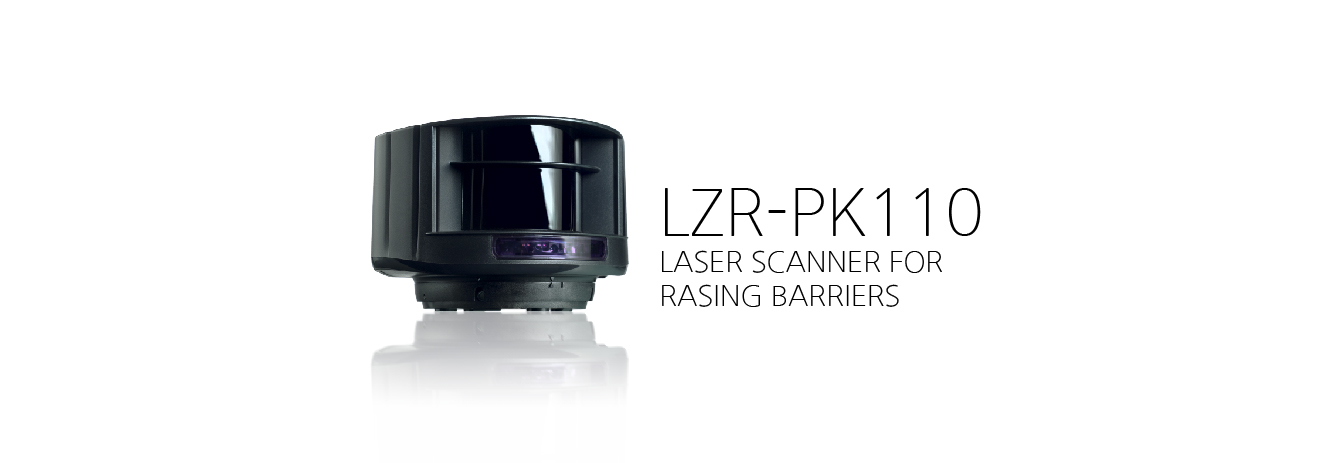

LZR-PK100
Category

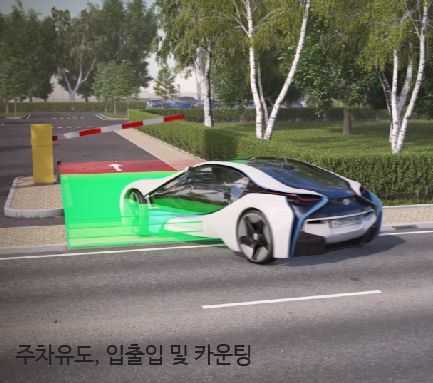

주차유도, 입출입, 카운팅
Type
AN INNOVATIVE ALTERNATIVE TO INDUCTION LOOPS
Detail View
제품 상세 이미지
Specification
주요 스펙
- 기술
- LASER scanner, time-of-flight measurement (4 laser curtains)
- 감지모드
- Motion and presence
- Max. detection field
- 9.9 m x 9.9 m
- Remission factor
- > 2 %
- 공급전압
- 10-35 V DC @ sensor side
- 소비전력
- < 5 W
- 전원 피크 전류
- 1.8 A (최대 80 ms @ 35 V)
- 출력
- 2 electronic relays (galvanic isolated - polarity free) 최대 스위칭 전압 : 35 V DC / 24 V AC 최대 스위칭 전류 : 80 mA (resistive) 스위칭 타임 : tON=5 ms; tOFF=5 ms 출력 저항 : typ 30 Ω 출력 전압 강하 : < 0.7 V @ 20 mA 누설 전류 : < 10 μA
- Test input
- 1 optocoupler (galvanic isolated - polarity free) Max. contact voltage: 30 V DC (over-voltage protected) Voltage threshold: Log. H: >8 V DC; Log. L: <3 V DC
- 외부보호등급
- IP65
- Temperature range
- 전원 공급시 -30 °C ~ +60 °C, 전원 차단시 -10 °C ~ +60 °C
- 습도
- 0-95 % non-condensing
- 진동
- < 2 G
- Angular resolution
- 0,3516 °
- Emission characteristics (IEC/EN 60825-1)
- IR LASER: Wavelength 905 nm; output power 0.10mW; Class 1 Visible LASER: Wavelength 635 nm; output power 0.95mW; Class 2
- Cable length
- 5 m (standard), max.: 10 m
- Response time
- Motion detection: typ. 200 ms (adjustable) Presence detection: typ. 20 ms; max. 80 ms
- LED-signal
- 1 blue LED: power-on status; 1 orange LED: error status; 2 bi-coloured LEDs: detection/output status (green: no detection; red: detection)
- Dimensions
- 125 mm (D) x 93 mm (W) x 70 mm (H) (with mounting bracket + 14 mm)
- Material / Colour
- PC/ASA / black
- Mounting angles on bracket
- -45 °, 0 °, 45 °
- Rotation angles on bracket
- -5 ° to +5 ° (lockable)
- Tilt angles on bracket
- -3 ° to +3 °
- Humidity
- 0-95 % non-condensing
- Pollution on front screens
- : max. 30 %; homogenous
- Conformity
- EN 60825-1; EN 12453 (Device E) EN ISO 13849-1 (Pl “d” CAT 2); EN 62061 (SIL 2); EN 61496-1; EN 61496-3 (Type 2); EN 12978
