Product

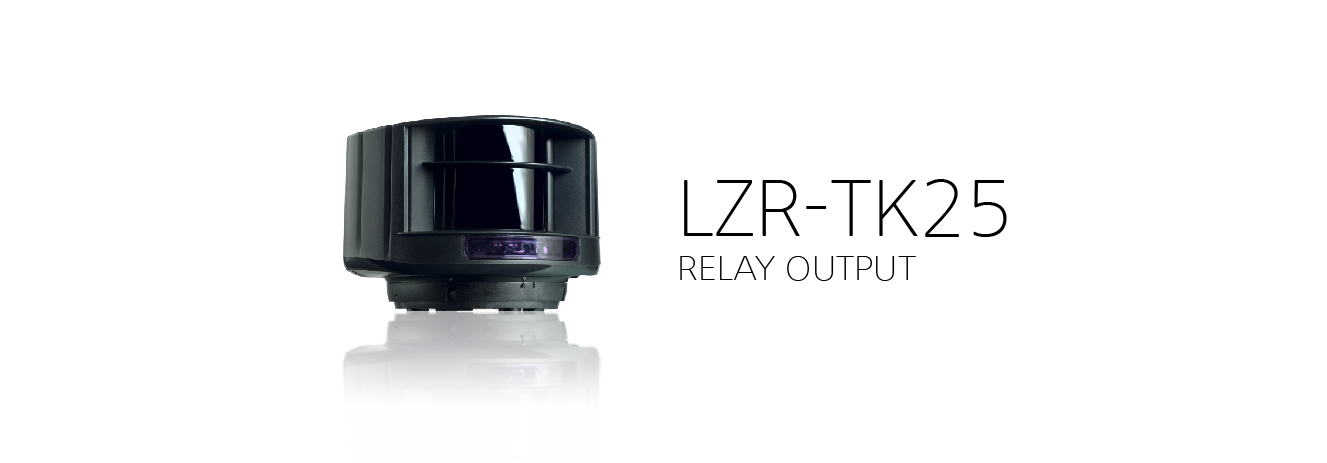

LZR-TK25

제품 상세 이미지

Specification

주요 스펙

Technology:: Laser scanner, time-of-flight measurement
Detection mode:: movement and presence
Detection range:: default: 10 m x 10 m @ 2% remission factor* max: 25 m x 25 m
Emission characteristics: IR laser: Red visible laser:: wavelength 905 nm; max. output pulse power 75 W (CLASS 1) wavelength 650 nm; max. output CW power 3 mW (CLASS 3R)
Supply voltage:: 10-35 V DC @ sensor side
Power consumption:: < 5 W
Peak current at power-on:: 1.8 A (max. 80 ms @ 35 V)
Response time:: typ 20 ms; max. 80 ms (+ output activation delay)
Output:: 2 electronic relays (galvanic isolated - polarity free) Max. switching voltage : 35 V DC / 24 V AC Max. switching current : 80 mA (resistive) Switching time : tON=5 ms; tOFF=5 ms Output resistance : typ 30 Ω Voltage drop on output : < 0.7 V @ 20 mA Leakage current : < 10 μA
Input: Max. contact voltage: Voltage threshold:: 2 optocouplers (galvanic isolated - polarity free) 30 V DC (over-voltage protected) Log. H: >8 V DC; Log. L: <3 V DC
Response time monitoring input:: < 5 ms
LED-signal:: 1 blue LED: power-on status 1 orange LED: error status 2 bi-coloured LEDs: detection/output status (green: no detection; red: detection)
Protection degree:: IP65
Humidity:: 0-95 % non-condensing
Pollution on front screens:: max. 30 %; homogenous
Norm conformity:: 2006/95/EC: LVD; 2002/95/EC: RoHS; 2004/108/EC: EMC EN 60529:2001; IEC 60825-1:2007 Laser Class 1 & 3R; EN 60950-1:2005; EN 61000-6-2:2005 EMC - Industrial level EN 61000-6-3:2006 EMC - Commercial level
Cable length: 10 m
Angular resolution: 0.3516 °
Dimensions: 125 mm (D) x 93 mm (W) x 70 mm (H) (mounting bracket + 14 mm)
Material: PC/ASA
Colour: black or white
Mounting angles on bracket: -45 °, 0 °, 45 °
Rotation angles on bracket: -5 ° to +5 ° (lockable)
Tilt angles on bracket: -3 ° to +3 °
Recommended temperature range: -30 °C to +60 °C if powered; -10 °C to +60 °C unpowered
Vibrations: < 2 G
