01. Detail Information

상세정보

Product

LZR-VISIOSCAN NAV

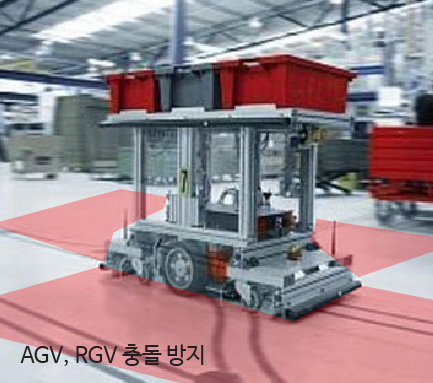

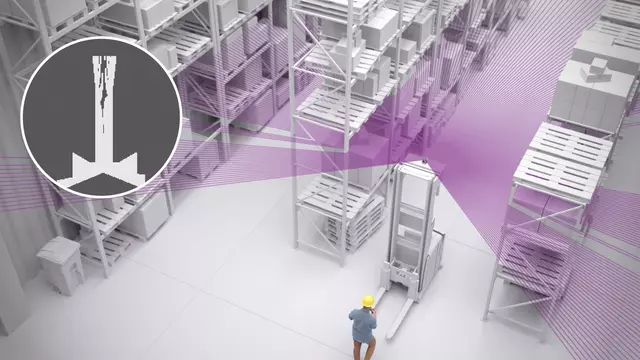

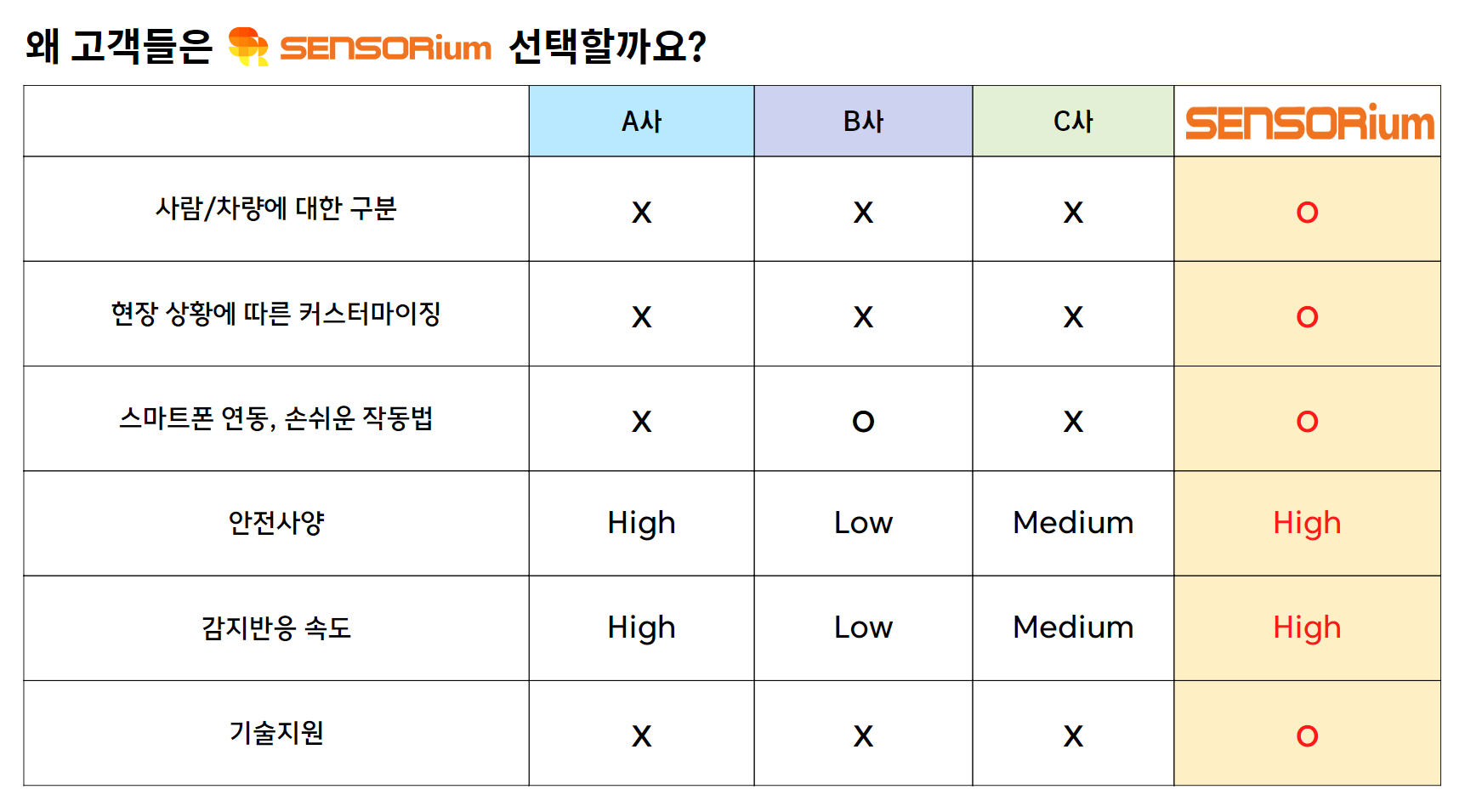

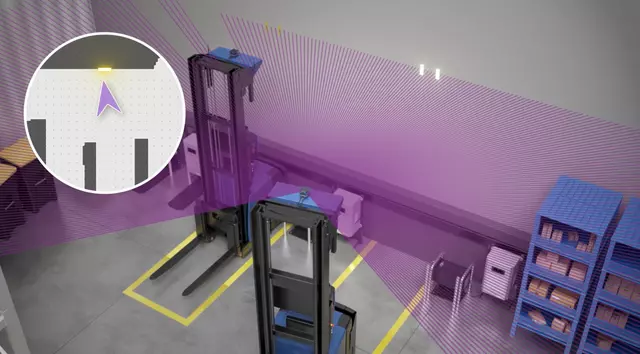

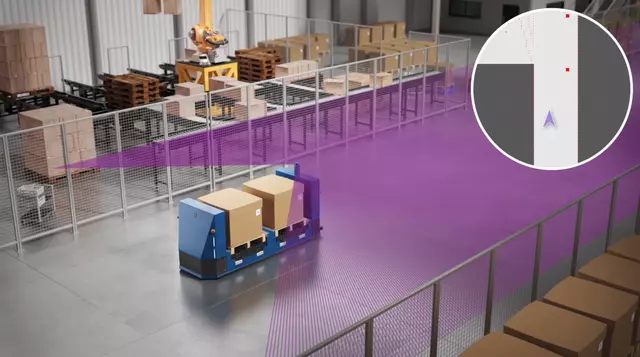

제품 상세 이미지

Specification

주요 스펙

Technology: Laser scanner, time-of-flight measurement
Scanning range: 0.08 – 25 m; 7 m @ 1.8% reflectivity; 15 m @ 10% reflectivity;
Curtain: 1
Scanning angle: 275°
Angular resolution/scanning frequency: 0.2° @ 80 Hz, 0.1° @ 40 Hz, 0.05° @ 20 Hz, 0.025° @ 10 Hz
Measurement accuracy: Systematic error: +/- 10 mm* Statistical error: ≤ 6 mm (0.08 – 7 m); ≤ 10 mm (7 – 15 m)*; ≤ 6 mm (0.08 – 25 m) for reflectors
Laser emission characteristics: IR LASER: wavelength 905 nm; Output power < 0.1 mW; Class 1 (IEC/EN 60825-1)
Diameter of the light spot: 11 mm x 2 mm @ 1 m (at 90% spot energy) Beam divergence: 8 mm/m (longitudinal) x 2 mm/m (transversal)
Supply voltage: 12–24 V DC, -10% / +30% (External electrical sources must be within specified voltages and ensure double insulation from primary voltages. For UL compliance, the device shall be supplied exclusively by class 2 power supplies.)
Flatness of scanning plane: ± 0.2°
Power consumption: < 6.0 W
Interfaces: Ethernet: TCP/IP, UDP/IP USB: 2.0, Type-C
Digital outputs: 2 x PNP (Max. 30 V DC, 80 mA)
Indicators: 3 x Status LEDs, 9 x Window contamination status LEDs
Degree of protection: IP67 (only with the USB port cover in place, IEC/EN 60529)
Dimensions: 80.2 mm (H) x 80.2 mm (W) x 85.3 mm (D) (not including connectors) (All dimensions to be held to ± 0.3 mm)
Weight: Approx. 640 g
Housing material: Zinc / Plastic
Optical window material: Plastic / PC
Connection type: 1 x Power/output, 5-pin, M12 male connector, A-coded 1 x Ethernet, 4-pin, M12 female connector, D-coded 1 x USB, Type-C, socket
Temperature range: Operating temperature: -30 °C to +60 °C Storage temperature: -40 °C to +70 °C
Relative humidity: < 95%, non-condensing
Height above sea level during operation: <3000 m
Ambient light immunity: 100 000 lux (indirect ambient light) 3 000 lux (IEC 61496-3)
EMC: Class of immunity: Industrial environments (IEC 61000-6-2) Class of emission: Industrial environments (IEC 61000-6-4)
Vibration resistance: Class 5M2 (IEC 60721-3-5); IEC 60068-2-6
Shock resistance: Class 5M2 (IEC 60721-3-5); IEC 60068-2-27
Conformity: This product conforms to all applicable European Union legislation, please refer to the Declaration of Conformity for further information. This product is UL Listed.
