Product

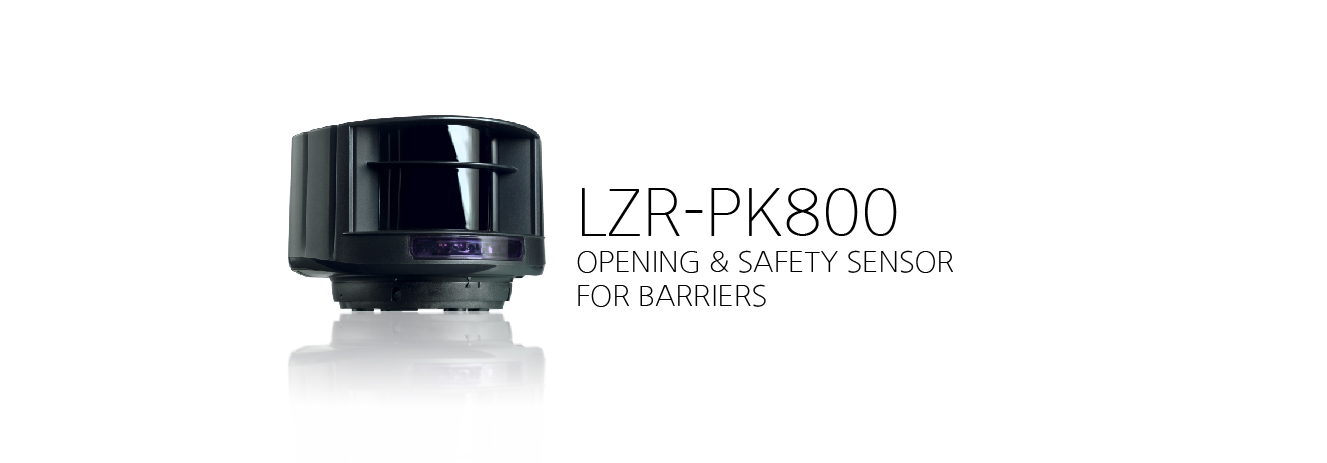

LZR-PK800

제품 상세 이미지

Specification

주요 스펙

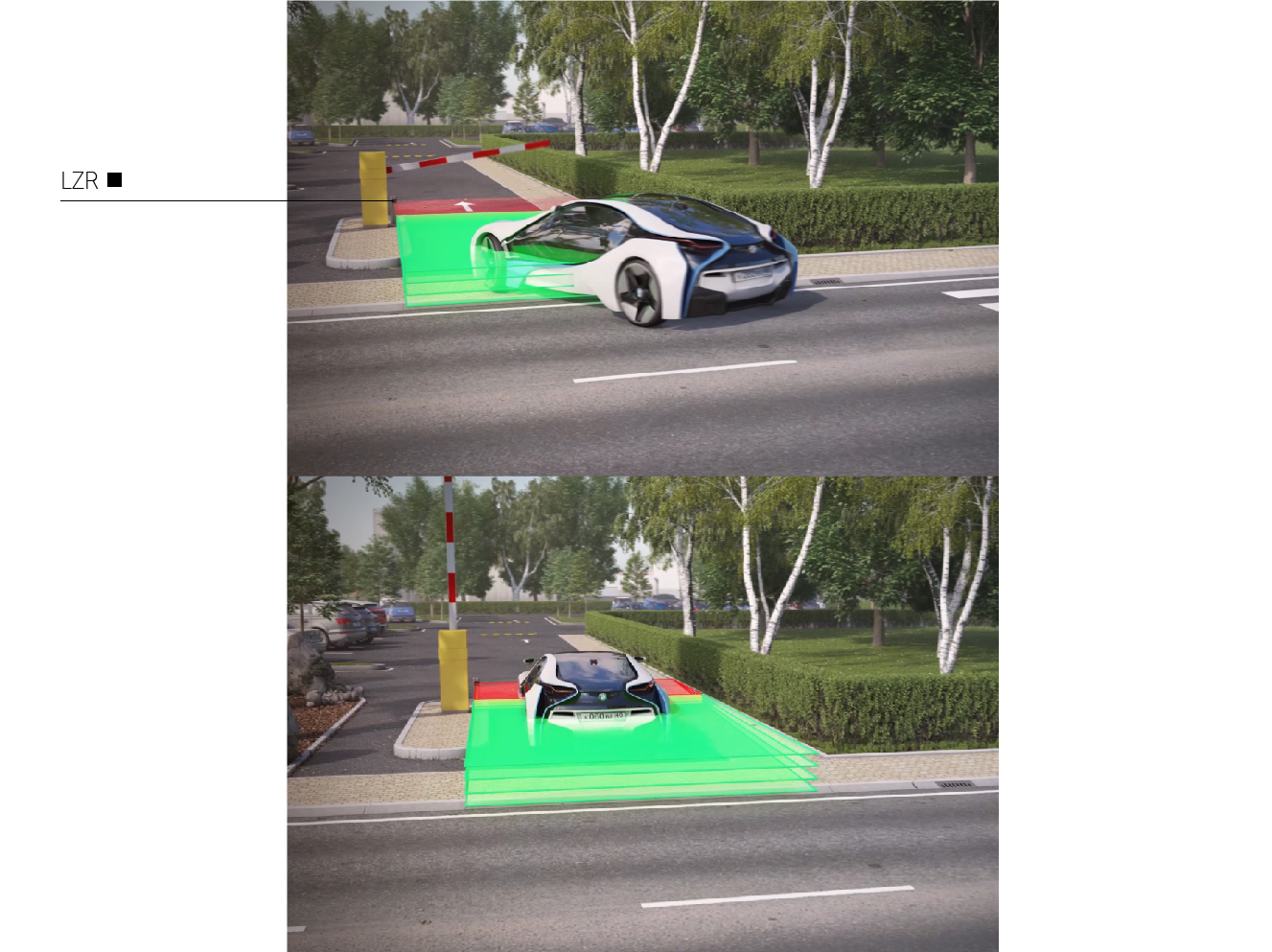

Technology: LASER scanner, time-of-flight measurement (4 laser curtains)

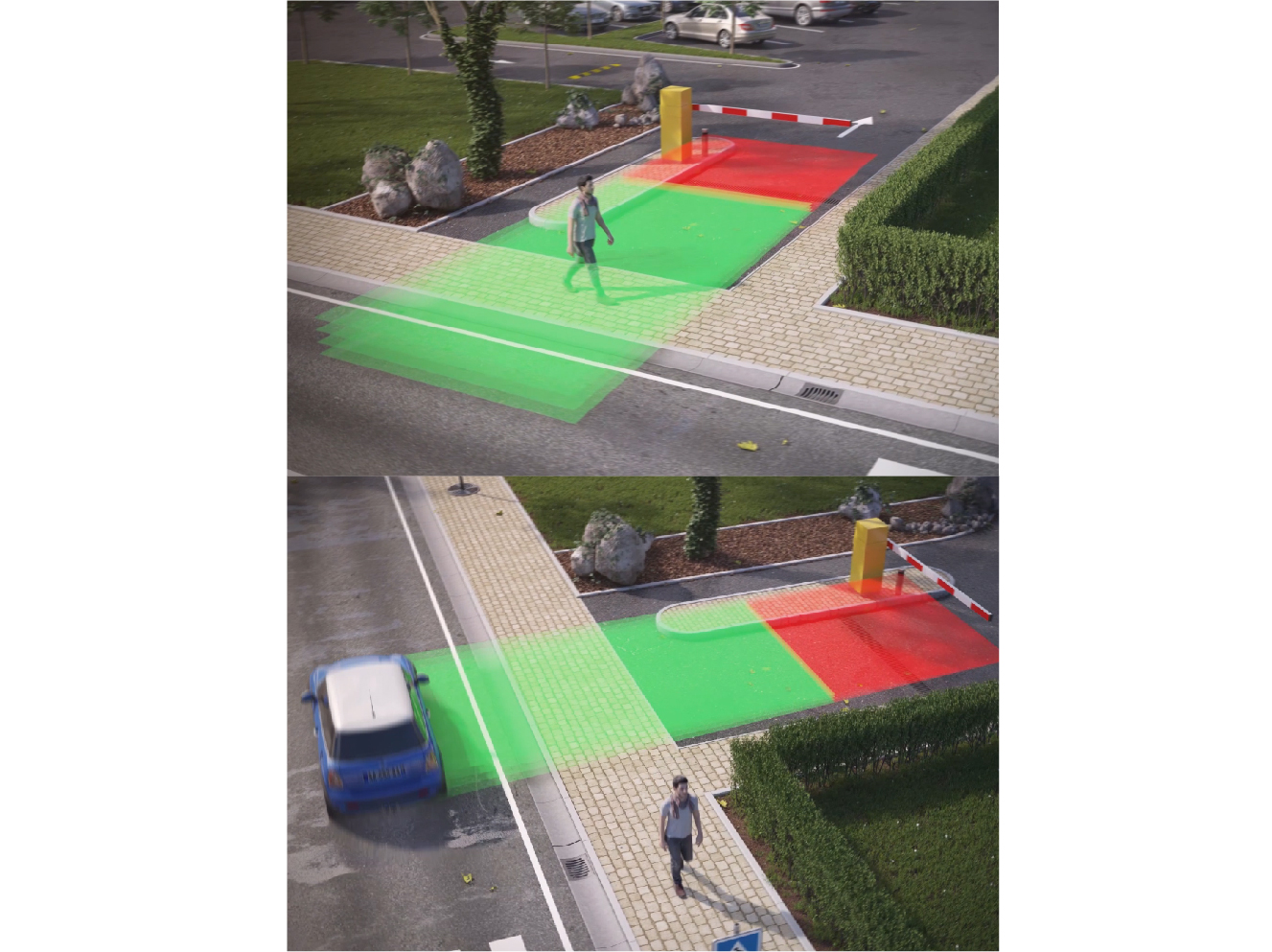

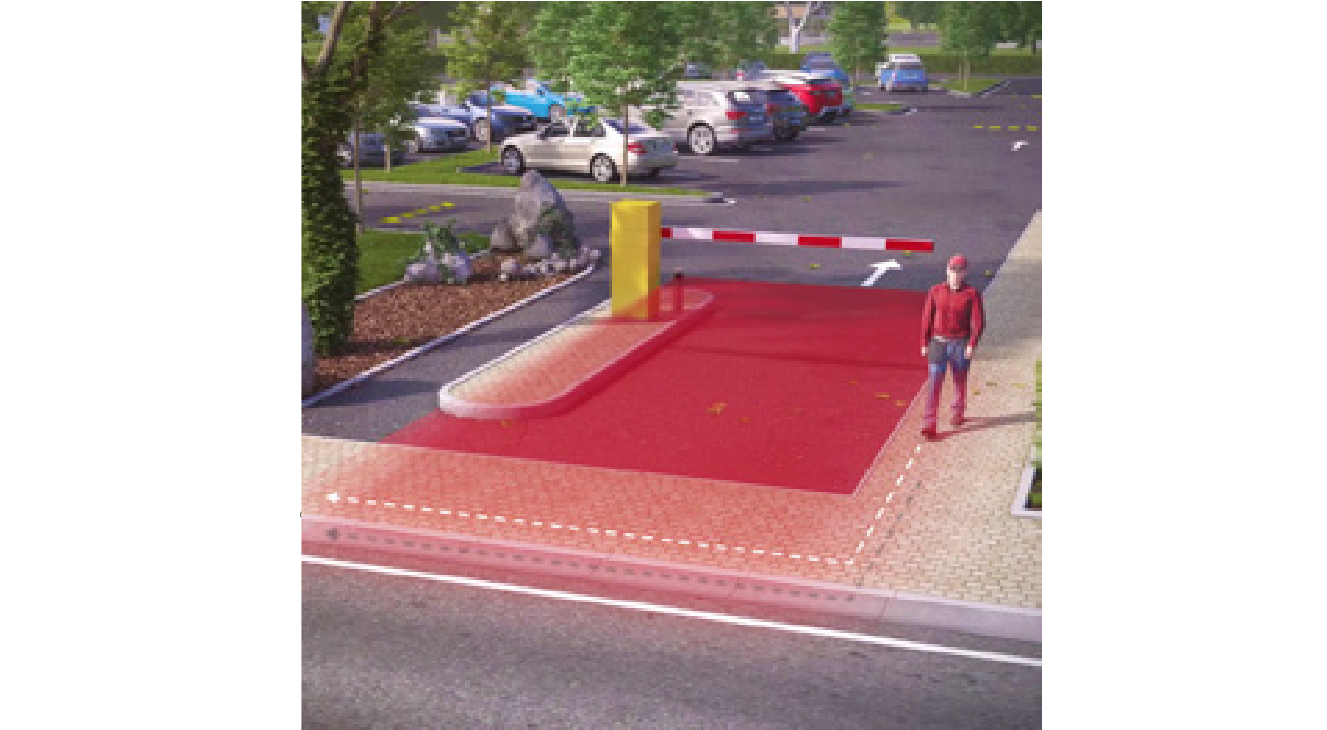

Detection mode: motion and presence
Max. detection field: 9.9 m x 9.9 m
Remission factor: > 2 %
Emission characteristics (IEC/EN 60825-1): IR LASER: Wavelength 905 nm; output power 0.10mW; Class 1 Visible LASER: Wavelength 635 nm; output power 0.95mW; Class 2
Supply voltage: 10-35 V DC @ sensor side (to be operated from SELV compatible power supplies only)
Power consumption: < 5 W
Peak current at power-on: 1.8 A (max. 80 ms @ 35 V)
Output: 2 electronic relays (galvanic isolated - polarity free) 최대 스위칭 전압 : 35 V DC / 24 V AC 최대 스위칭 전류 : 80 mA (resistive) 스위칭 타임 : tON=5 ms; tOFF=5 ms 출력 저항 : typ 30 Ω 출력 전압 강하 : < 0.7 V @ 20 mA 누설 전류 : < 10 μA
Test input: 1 optocoupler (galvanic isolated - polarity free) Max. contact voltage: 30 V DC (over-voltage protected) Voltage threshold: Log. H: >8 V DC; Log. L: <3 V DC
Protection degree: IP65
사용가능온도: 전원 공급시 -30 °C ~ +60 °C, 전원 차단시 -10 °C ~ +60 °C
습도: 0-95 % non-condensing
진동: < 2 G
Pollution on front screens: max. 30 %; homogenous
Response time: Motion detection: typ. 200 ms (adjustable) Presence detection: typ. 20 ms; max. 80 ms
Angular resolution: 0,3516 °
Cable length: 10 m
LED-signal: 1 blue LED: power-on status; 1 orange LED: error status; 2 bi-coloured LEDs: detection/output status (green: no detection; red: detection)
Dimensions: 125 mm (D) x 93 mm (W) x 70 mm (H) (with mounting bracket + 14 mm)
Material / Colour: PC/ASA / black
Mounting angles on bracket: -45 °, 0 °, 45 °
Rotation angles on bracket: -5 ° to +5 ° (lockable)
Tilt angles on bracket: -3 ° to +3 °
Conformity: IEC 60825-1; IEC 61000-2; IEC 61000-3; IEC 60529
